Elios Observation System
Elios OS Series, Eldor short/mid/long range observation systems provide an innovative solutionfor Homeland Security applications. The system is designed for 24/7 surveillance and reconnaissance tasks such as:
► Coastal Surveillance ► Critical Mission Vehicles & Vessels ► Perimeter Security

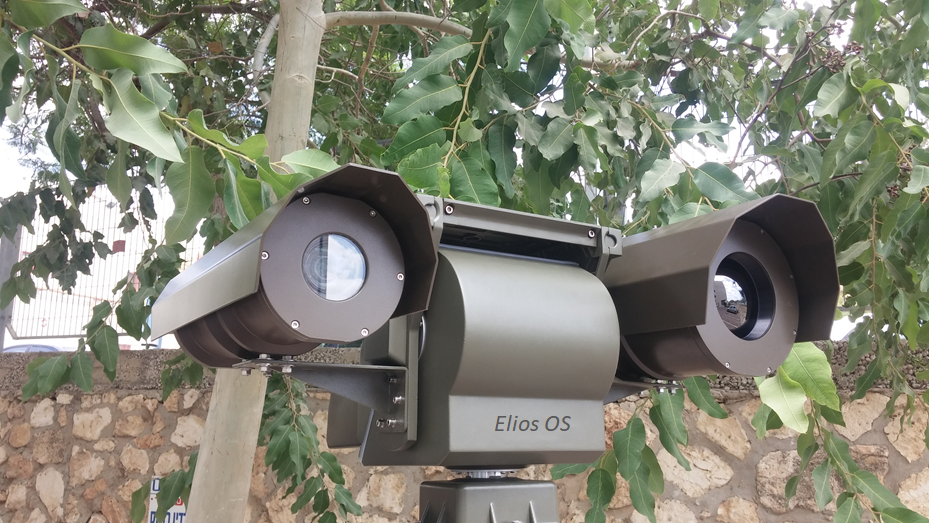

Elios OS Series is a modular and scalable observation system equipped with dual sensors Thermal & FHD cameras, Laser Range Finder (optional) mounted on remote controlled and highly precise Pan Tilt Unit.
Pan Tilt Unit is designed for continuous use in harsh environments conditions: ► Stabilized module for vehicle / marine vessel applications. ► 360° full rotation using Slip Ring mechanism ► Proportional motor speed according to camera zoom position ► Manual or automatic control for target tracking following given radar or map coordinates.
Thermal Camera: ► High sensitivity, 640x480, 17u un-cooled thermal detector ► Single FOV lens 35mm, 60mm, 100mm, 150mm ► Dual FOV lens 45/135mm ► Continuous zoom lens 15-100mm, 25-150mm, 26-105mm, 25-225mm ► Athermalic or Motorized focus control ► Day or night use
CCD Camera: ► Color and black / white FHD 1080P camera ► Built in optical zoom X36 / X55 ► Digital zoom X12 ► Video image electronic stabilization
LRF – Laser Range Finder (optional) ► Range to target measurements ► Eye safe, invisible to human eye ► Measurement range up to 12 km
|
|
|
|
|
